Passive Microwave Components
- Capable of handling up to 2W (+33dBm) input drive level
- Symmetrical or skewed asymmetrical frequency response
- Parts typically weigh 40g
This family of equalisers are primarily aimed at tailoring the essentially flat output from a driver amplifier to drive a Travelling Wave Tube (TWT).
Please contact us with your specific needs.
A typical broadband TWT, for optimal performance, requires its input drive level to slowly vary across up to a 3:1 bandwidth by 20dB. These passive equalisers can have either a symmetrical frequency response or a skewed asymmetrical frequency response.

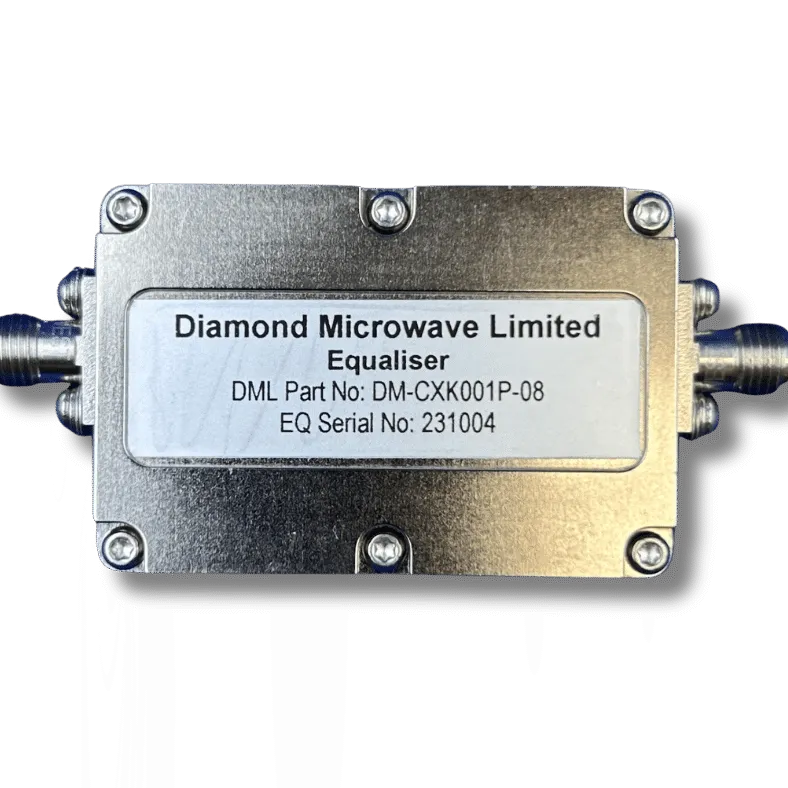

They have excellent input and output match and are produced in a small, lightweight housing with SMA connectors. Depending on the exact requirements, they can handle up to 2W (+33dBm) input drive level.
The housings can be designed with a range of mounting options depending upon system requirements. The parts typically weigh 40g.
Tailored Solutions.
The design can be tailored to meet individual specifications if required. Please contact us with your specific needs.
